PLEATED PRE-FILTER

AirPurete™ PLEATED PRE-FILTERS (MULTI-PLEAT) are cleanable, washable panel filters constructed from non-woven, high-lofted synthetic (polyester) media. They are designed for coarse filtration within air intake systems for general ventilation and air handling units (AHUs) in public buildings, offices, and industrial facilities.

Product Features

Primary use as a pre-filter to extend the life of downstream fine filters, though they are equally effective as standalone main filters.
Ideal for spray booth exhaust systems where they function as efficient paint mist arrestors.
Features progressively built-up, thermally bonded polyester media which ensures maximum dust loading with a low pressure drop.
The media is non-fiber-shedding and fully incinerable for easy disposal.
Engineered for high air volume applications, high-humidity conditions, and corrosive environments.
The lightweight, sturdy, and compact design ensures easy handling and cost-effective shipping.

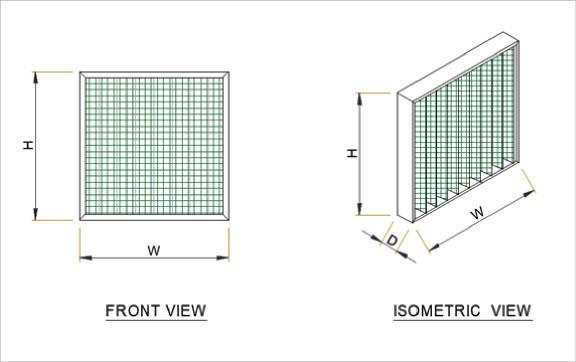

Available in various face sizes with depths up to 6”.

Applications

Air-Conditioning Systems

Car Ventilation

General Air Handling Unit

Intake, Exhaust Air Systems

Pharmaceutical

Bio Medical

Food Processing

Hospitals

Laboratories

Universities

Bio Technology

Gas Turbines

House Hold Applications

Paint Booths

Ventilation Systems

Specifications

Model	Pleated Pre-Filters (Multipleat)
Type	Cleanable Pre-Filter / Washable Type
Filter Grades (EN 779)	G2 / G3 / G4
Filter Grades (ASHRAE 52.2) - MERV	4 , 6 , 8
Media	100% Synthetic based Polyester Fiber
Media Support	PVC Coated steel mesh support on both sides
Frame	GI / SS / Aluminum
Recommended Final Pressure Drop	1.00" WG
Maximum Temperature	80°C
Flammability	UL 900 Classified
